Solar Cables for Solar Power

Product Description

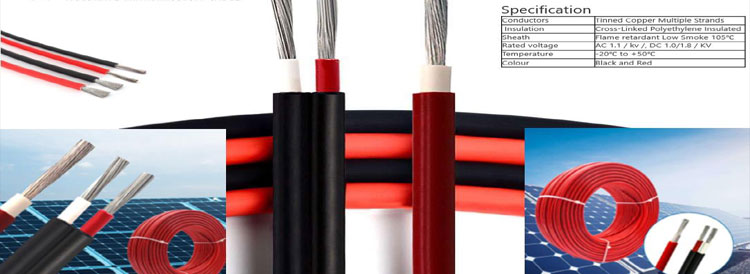

The solar photovoltaic cable is suitable for connection the solar power generation device connectors and converters (inverters). It can be installed and used outdoors under different climatic conditions, and it can also be adapted to dry and humid indoor working environments. TUV certified The size ranges from 1.5mm2 to 95mm2, among which the most popular sizes are 4mm2, 6mm2 PV cable.

• The working environment temperature ranges from -20℃ to +50℃. Of course, for special environments, and the work temperature conductor is 105℃;
• The rated voltage is 1.1kv;
• Tinned copper conductor, the conductor is not easy to oxidize and age;
• Wind and rain resistance, UV resistance and ozone erosion resistance, and withstand a wider range of temperature changes;
• The material cross-linked by radiation has high mechanical strength；

Specification

Conductors	Tinned Copper Multiple Strands
Insulation	Cross-Linked Polyethylene Insulated
Sheath	Flame retardant Low Smoke 105℃
Rated voltage	AC 1.1 / kv /, DC 1.0/1.8 / KV
Temperature	-20℃ to +50℃
Colour	Black and Red

Parameter

No. Of cores x Construction（mm2）	Conductor Construction（n / mm）	Conductor No./mm	Insul. Thick. (mm)	Current Aarring Capacity (Amp)
1X1.5	30/0.25	1.58	4.90	30
1X2.5	50/0.25	2.06	5.45	41
1X4.0	56/0.3	2.58	6.15	55
1X6	84/0.3	3.15	7.15	70
1X10	80/.40	4.0	9.05	98
1X16	126/.40	5.7	10.2	132
1X25	196/.40	6.8	12.0	176
1X35	276/.40	8.8	13.8	218
1X50	396/.40	10.0	16.0	280
1X70	360/.50	11.8	18.4	350
1X95	475/50	13.8	21.3	410
Twin Core
No. Of cores x Construction（mm2）	Conductor Construction（n / mm）	Conductor No./mm	Insul. Thick. (mm)	Current Aarring Capacity (Amp)
2x1.5	30/0.25	0.7	0.8	30
2x2.5	50/0.25	0.7	0.8	41
2x4.0	56/0.3	0.7	0.8	55
2x6.0	84/0.30	0.8	0.9	70
2x10.0	142/0.30	0.9	1.1	98
